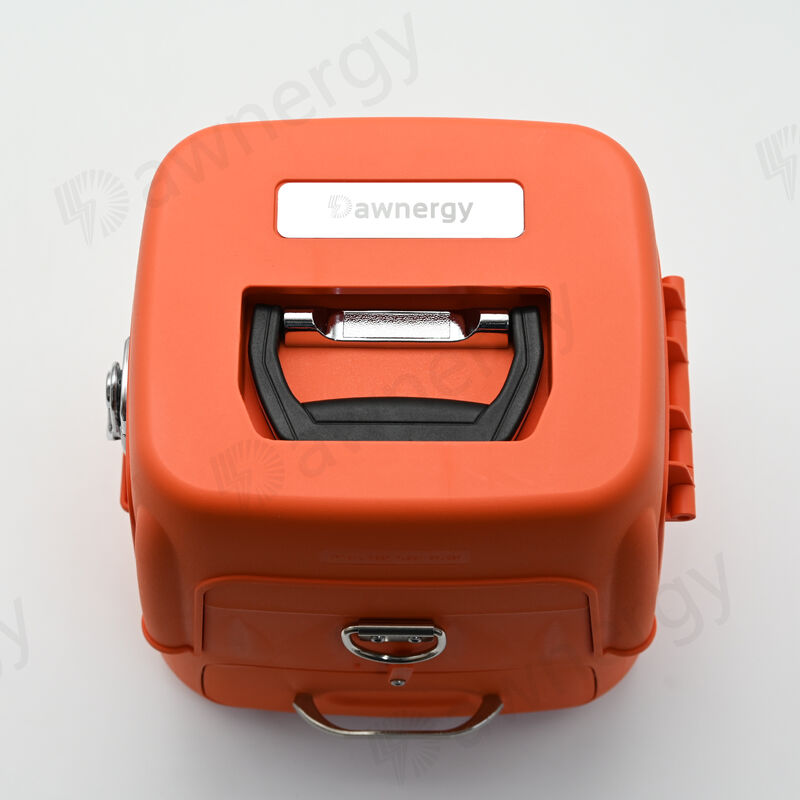

Optical Fiber Fusion Splicer Dawnergy Splicing Machine AI-9

Fiber alignment

Core/cladding

Motor number

6 motors (accurate of fiber alignment: 0. 1µm)

Splicing time

5s

Heating mode

15s, can be customized according to the external envi onment

Fiber type

Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654

fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.

The cladding

diameter

80-150µm

Splicing loss

0.02dB (SM), 0.01dB (MM) 0.04dB (DS/NZDS)

Splicing mode

Automatic focusing core alignment, conventional/high precision welding

Splicing way

Automatic, semi-automatic

Fiber holder

Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber,

umper fiber,drop cable

VFL

The machine comes with: power: 15mW, 2Hz flashing and steady on mode

OPM

Wavelength: 850nm 1300nm 1310nm 1490nm 1550nm 1625nm 980nm 1270nm 1577nm 1650nm/Measurement range: -50+26dbm Absolute e ror: <0.3dB (-50dbm -+3dBm range)

Battery capacity

7800mAh large capacity lithium battery charging time :53.5; It can continuously weld and heat about 260 cores

Magnification

320x (X or Y axis single display), 200x (x and Y axis dual display)

Fiber diameter

Coating diameter: 80-150µm/Coating diameter: 100-1OOOµm

Cutting length

Coating layer 250µm below: 8-16mm/coating layer 250-1000µm: 16mm

Heat shrink tube

60mm 50mm 40mm 25mm

Tensile testing

standard 2N

Display

5-inch color touchscreen

Boot time

1s, boot can enter the working mode

Data is stored

Unlimited, machine sto age 1000 groups, the excess part can be stored in the serve ,can export data.

Wireless communication

Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range 1s 60m

Software upgrade

Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

Management function

The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment

Return loss

Better than 60 db

Product

protection

Waterproof, dustproof and fall proof

Power supply

Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be ident ed, real-time monitoring of the current battery level

The work environment

Temperature: -15 ~ +50°C, hum ty: < 95%RH (no condensation), working altitude: O - 5000m, maximum wind speed: S15m/s
